Basic material :Silk or synthetic fabric
Impregnated varnish:Oily varnish
Insulation class:A (105 degree)
Brief introduction:

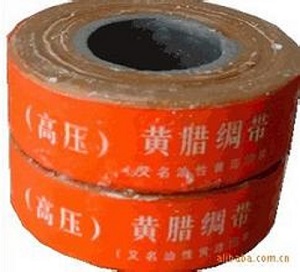

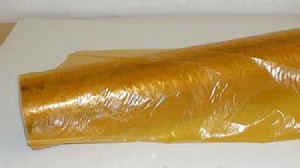

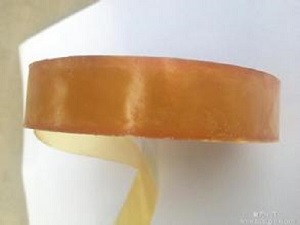

2210- Oil Varnished Silk is made from the silk,ie.,insulating silk,and then,in the process of dipping in the oily paint and drying.
Product Features:
Has good electrical and mechanical performances.
Product Application:
Can be used for the binding insulation,coil insulation,liner insulation for motors,transformer and electric appliances and motors.
Transportation and storage condition:
The storage life is half a year at temp lower than 25 degree celsius,since delivery.The material after the storage life may be used if it is tested qualified according to the standard.Product shall be stored in a dry and clean stockhouse with good ventilation and away from fire and away from sunshine.
Thickness:0.1 0.12 0.15 0.17 0.2 0.25mm
Oil varnished silk width:1050mm
Oil varnished synthetic fabric width:1350-1380mm
through ISO 9001:2008,ISO 14001 ,SGS,CE,RoHs certification
